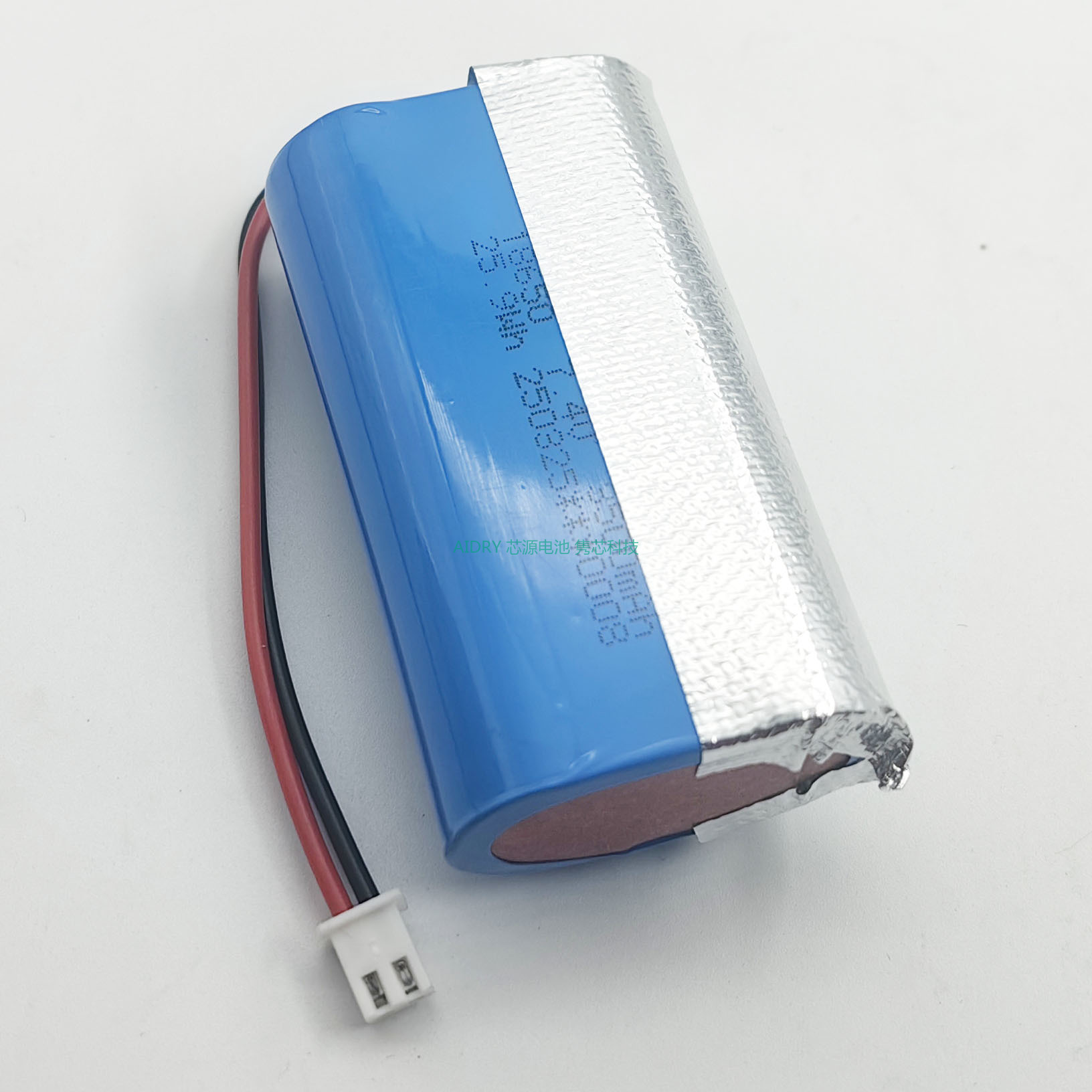

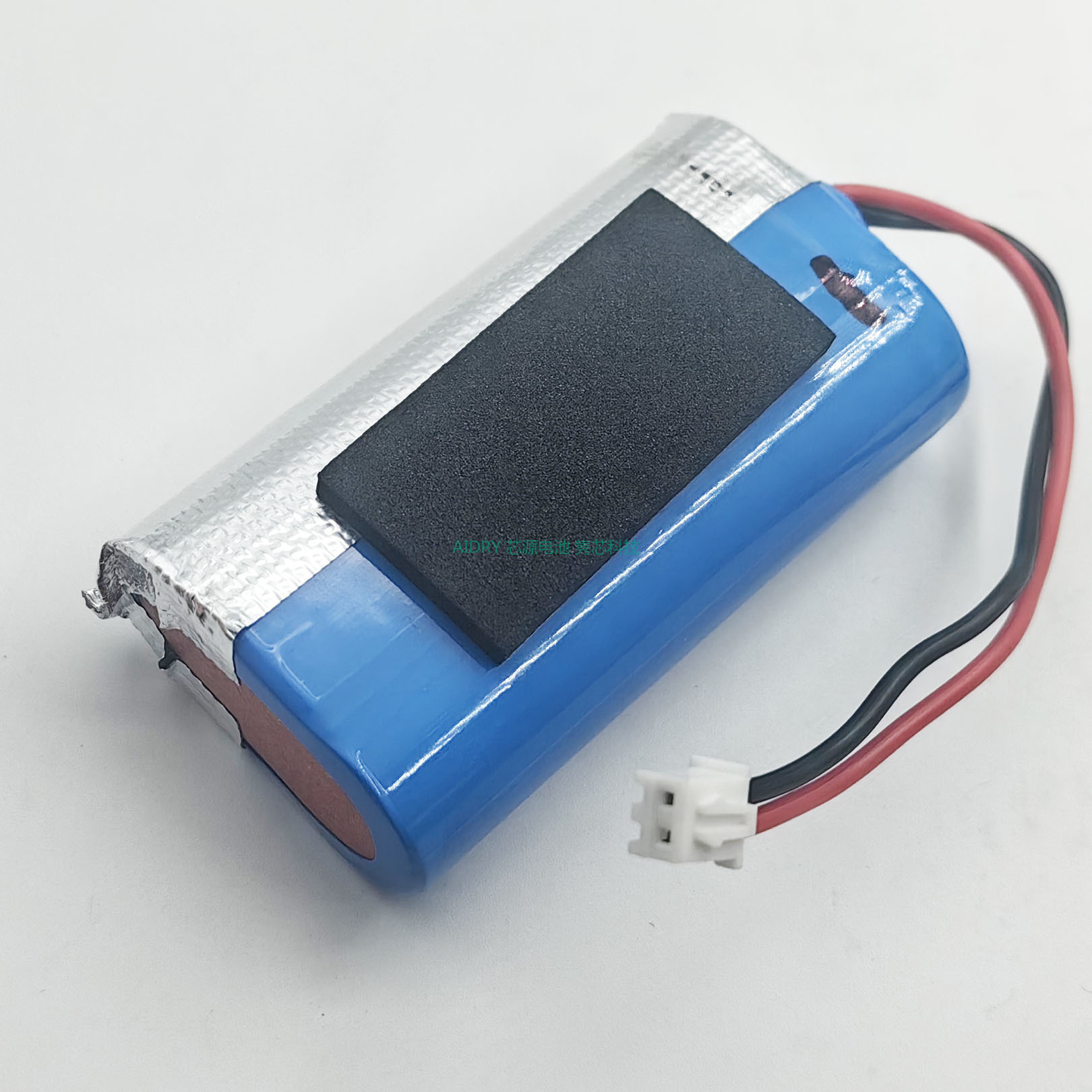

JX-2S3500H锂电池组

电芯：18650（动力型）

额定电压：7.4V

额定容量： 3500mAh，额定功率：25.9Wh

充电限制电压：8.4±0.05V，放电终止电压：6±0.10V

标准充电：1750mA、  快速充电：2500mA

标准放电：3500mAh、快速放电：6000mA

电池组自带隔热装置

电池组自控充放电温度：

充电温度：45+2℃，放电温度：65+2℃

无需外围改板，两芯线直接替换使用（P2P模式）

电池组保护功能：过充电保护，过放电保护，过电流保护，短路保护，二次意外短路保护装置，内部自带温度控制。

外观尺寸:  65.5*36.5*18.5mm

工作温度：充电温度：0~45℃， 放电温度：-20+65℃，相对湿度：65±20%

贮藏温度建议：-5℃~35℃，贮藏期间电池必须每3个月充电一次至50%~70%的容量.

Battery: 18650 (power type)

Rated voltage: 7.4V

Rated capacity: 3500mAh, rated power: 25.9Wh

Charge limit voltage: 8.4±0.05V, discharge termination voltage: 6±0.10V

Standard charge: 1750mA, fast charge: 2500mA

Standard discharge: 3500mAh, fast discharge: 6000mA

The battery pack has its own insulation

Battery control charging and discharging temperature:

Charging temperature: 45+2℃, discharge temperature: 65+2℃

No need to change the external board, two cores directly replace the use (P2P mode)

Battery pack protection function: over charge protection, over discharge protection, over current protection, short circuit protection, two accidental short circuit protection device, internal temperature control.

Appearance size: 65.5*36.5*18.5mm

Working temperature: Charging temperature: 0~45℃, discharge temperature: -20+65℃, relative humidity: 65±20%

Recommended storage temperature: -5℃~35℃, the battery must be charged every 3 months to 50%~70% capacity during storage.
